Solar System
Technical Specifications of the
solar system

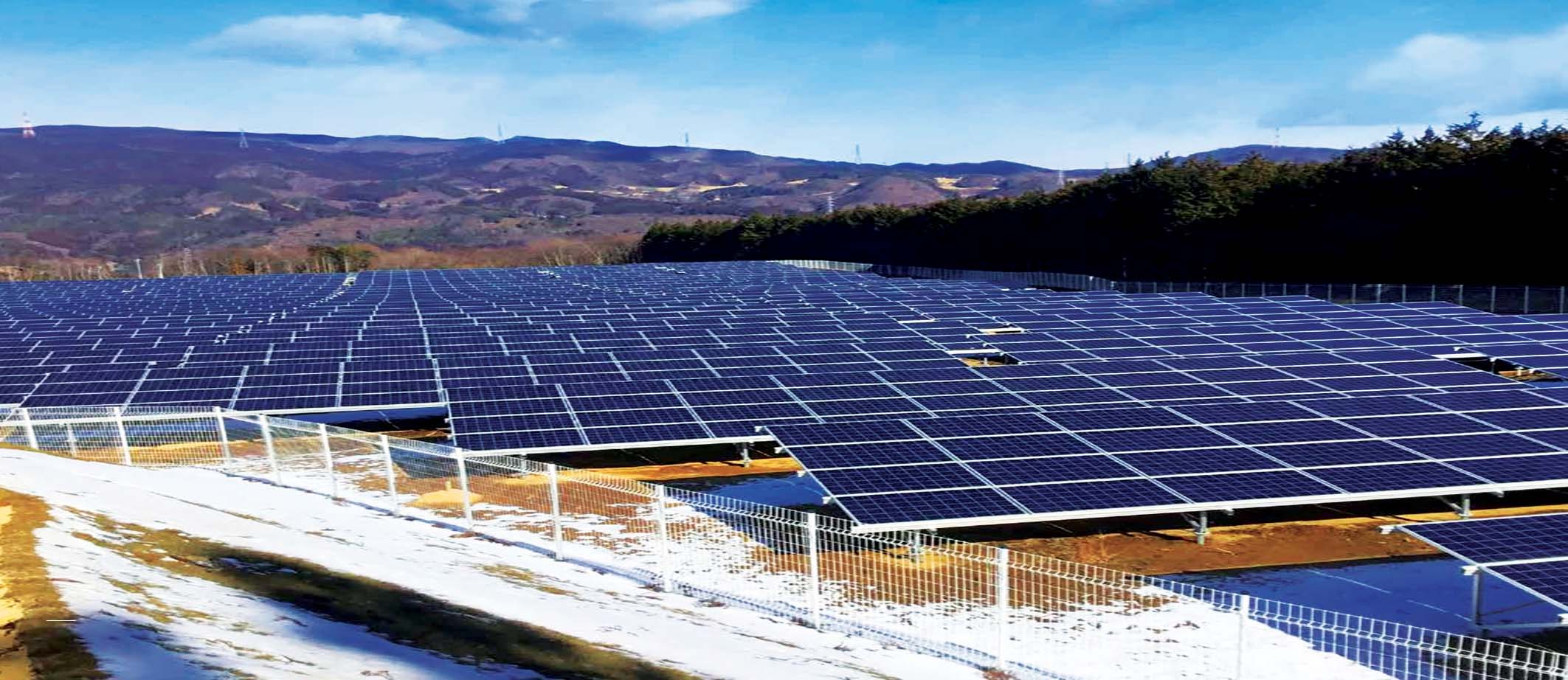

SOLAR PANEL SYSTEM
Solar module:
Mono solar panel 650W Trina monocrystalline bifacial type
Size: 2384*1303*33mm
Weight: 38.3kg
•Inverter:
Sungrow Inverter SG125CX three Phase Inverter With wifi mode
MPPT Efficiency: >98.5%
Cable:
TUVPVF-1*4MM
SOLAR GROUND STEEL MOUNTING SYSTEM
It can adapt to the undulating terrain and any configuration by choosing different foundation such as concrete base or ground screw.

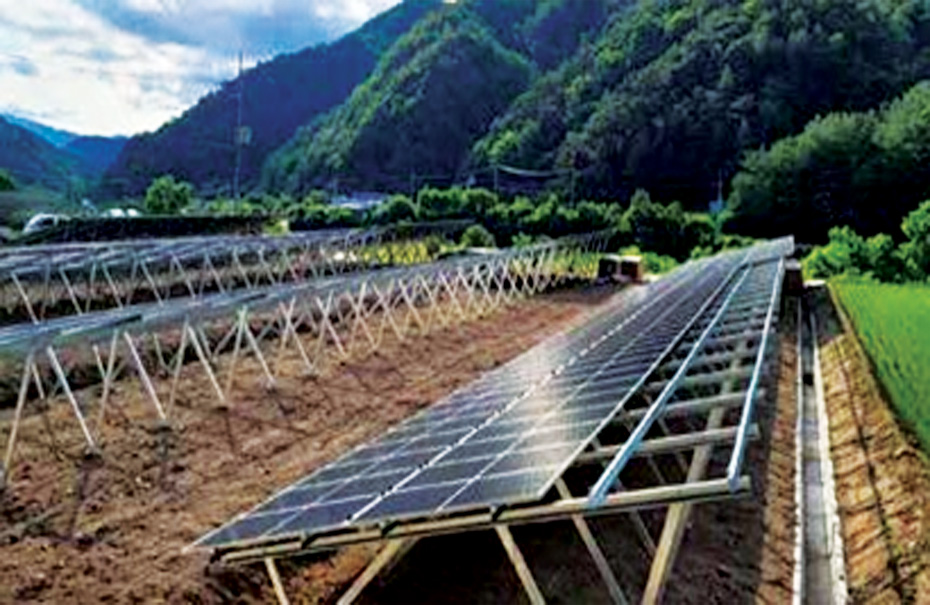

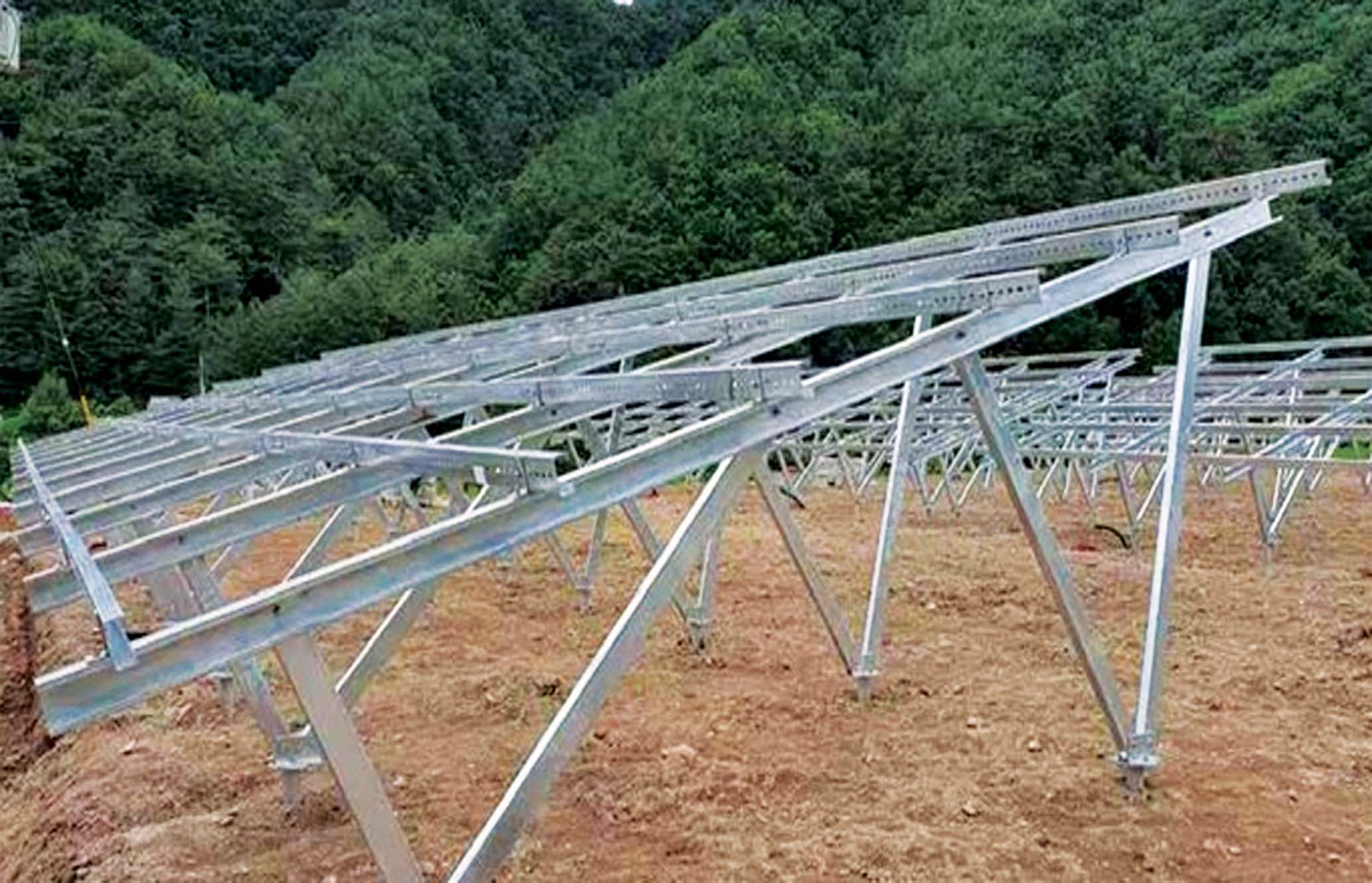

STEEL GROUND MOUNTING SYSTEM
STEEL GROUND MOUNTING SYSTEM

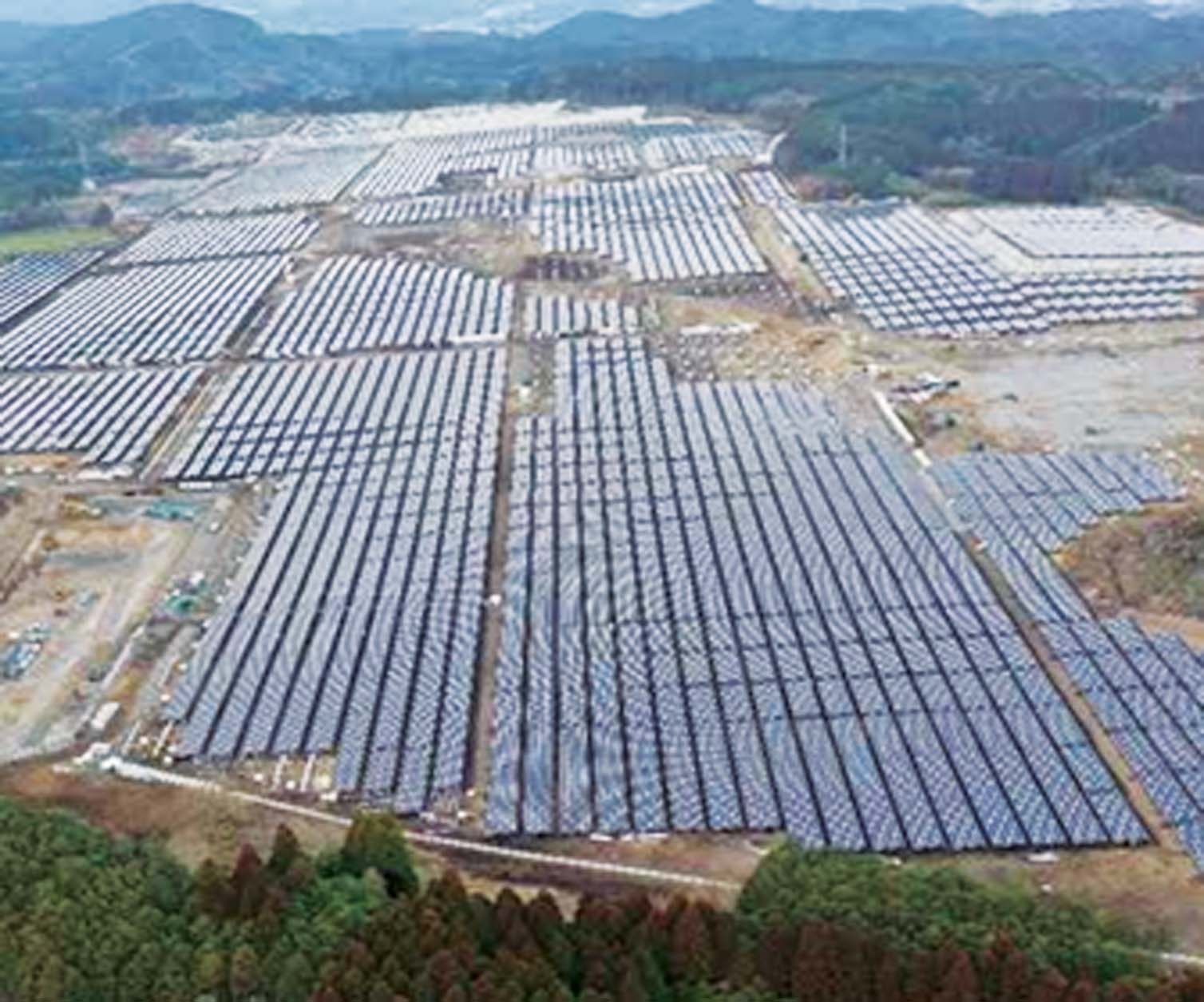

We offer fixing structure with very competitive price to satisfy big solar farm projects' demand. It generally uses single or double post to adapt to different environment and terrain.

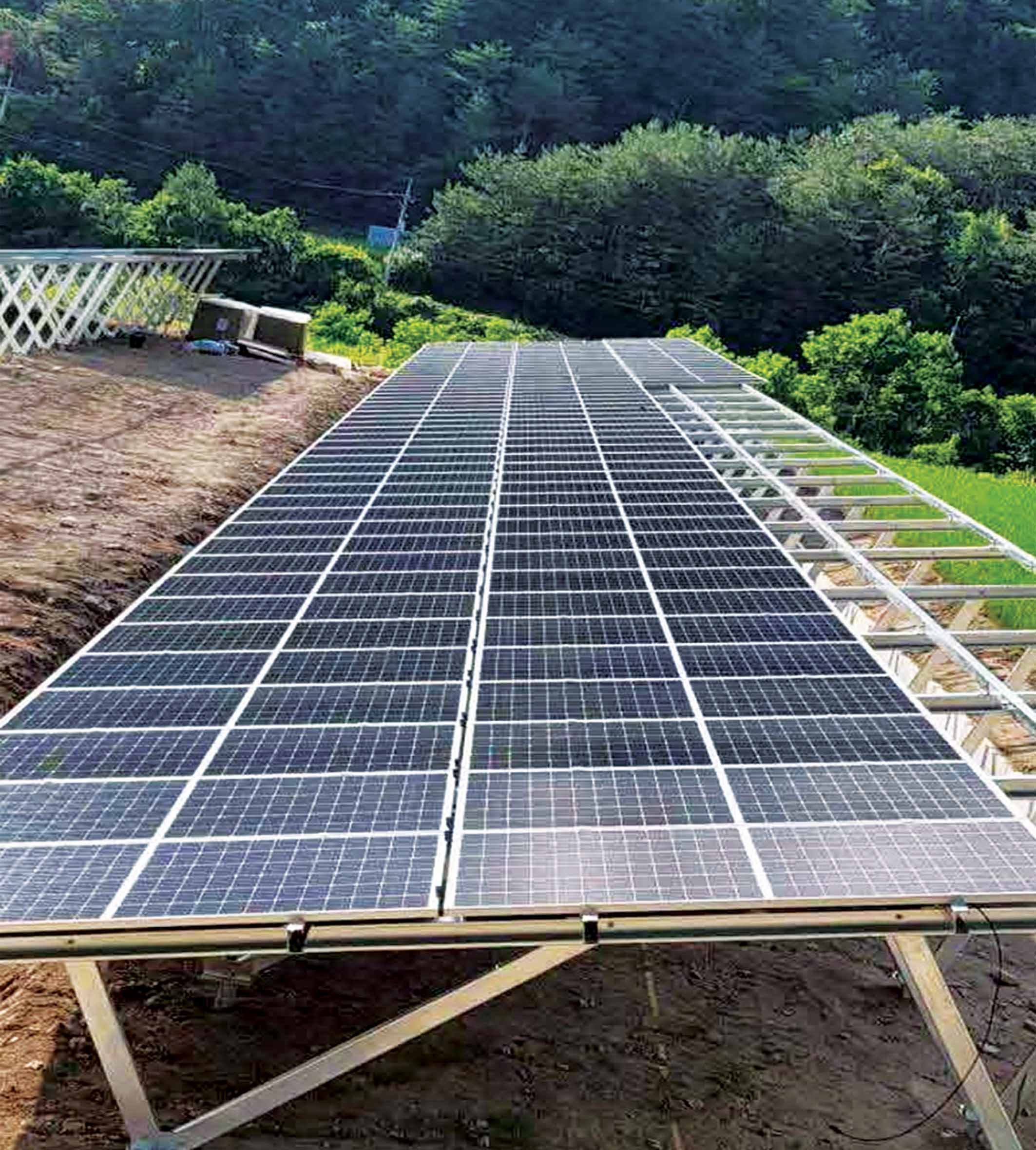

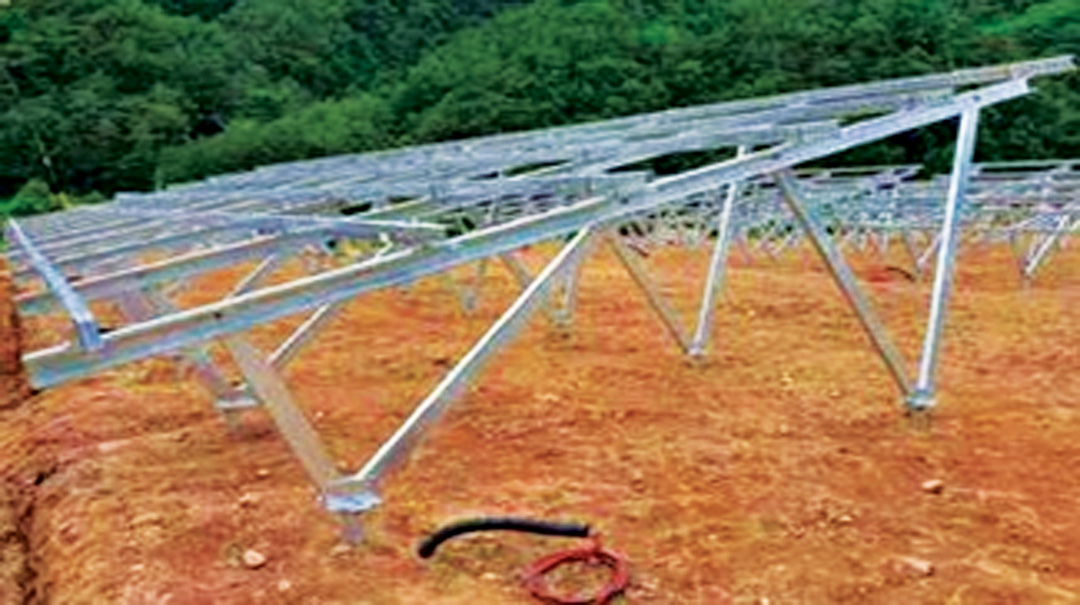

ALUMINUM GROUND MOUNTING SYSTEM
Solar Ground Mounting System is typically applied on flat open field ground. Main components are high pre-assembled in our factory, which save lots of your onsite installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long-life time.

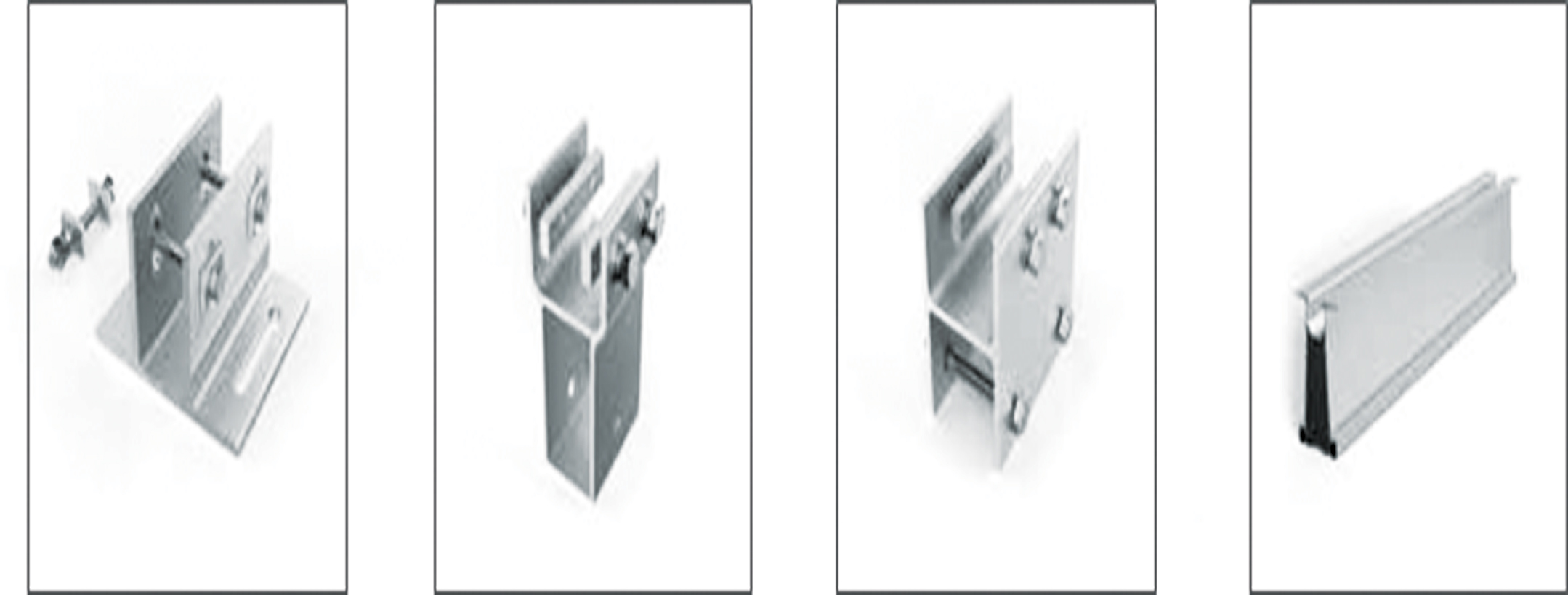

COMPONENTS
STEEL GROUND MOUNTING SYSTEM

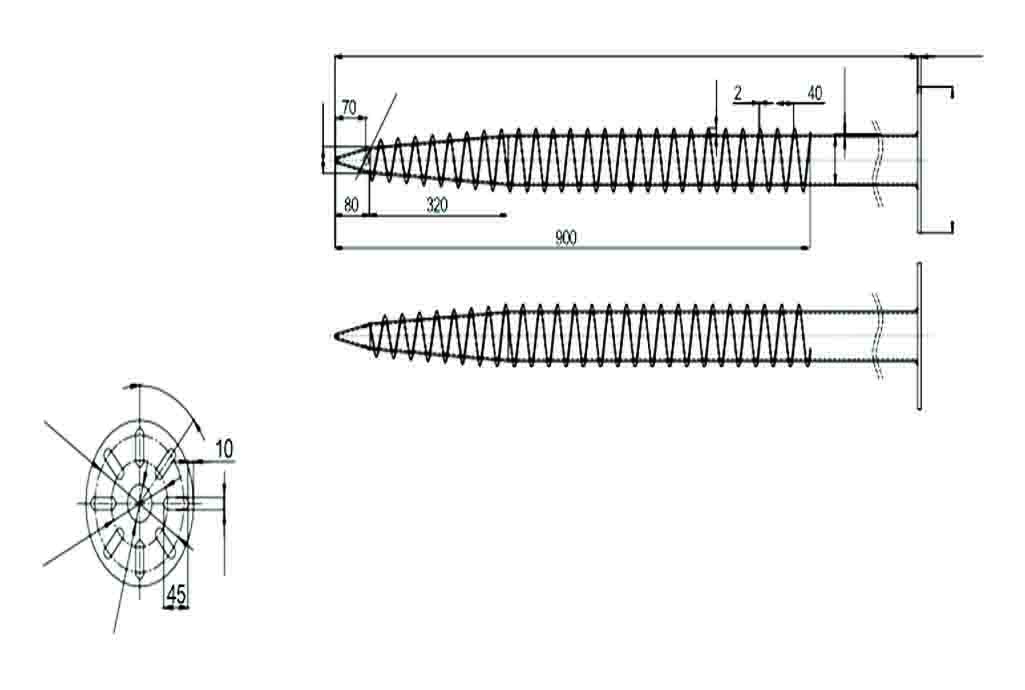

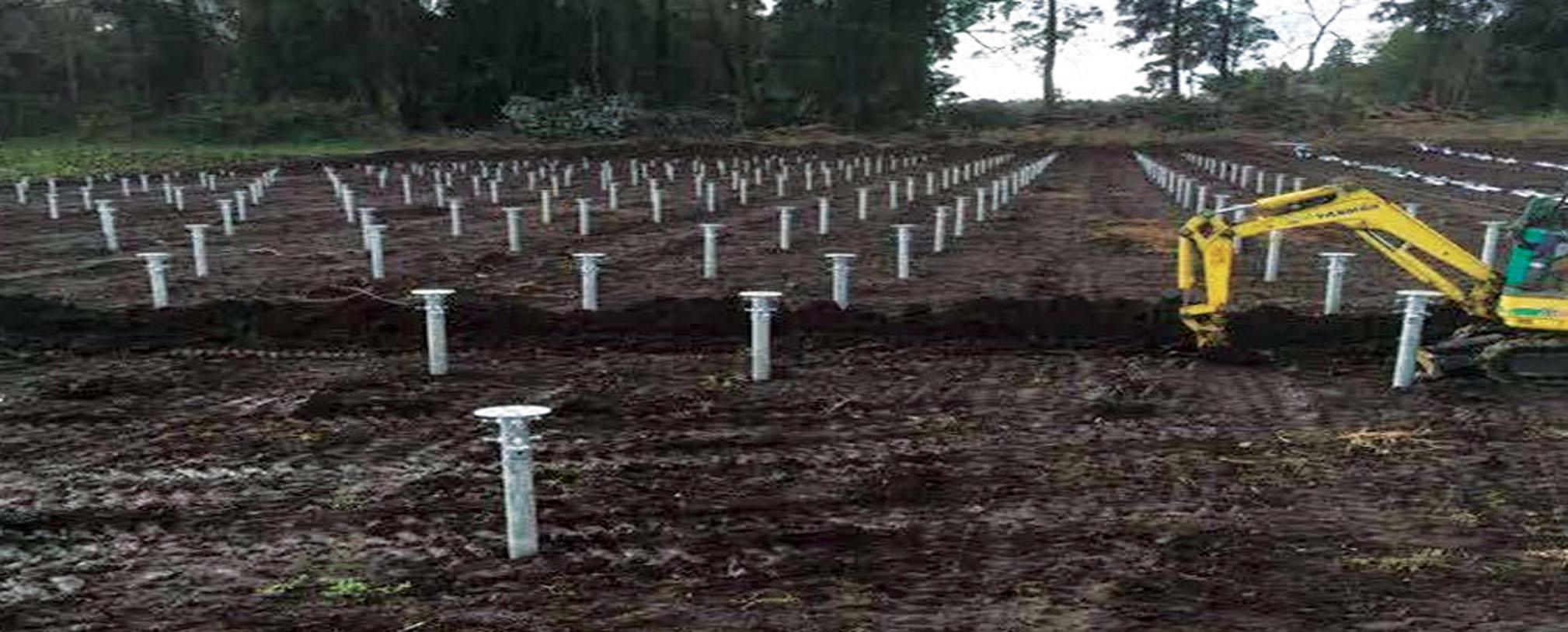

GROUND SCREW
STANDARD SPECIFICATION
Product Name：Ground Screw（With Flange）
Material：Carbon Steel( Q235B / ISO 630 Fe360D )
Anti-Corrosive：Hot-dip galvanizing ( DIN EN ISO 1461 )
Galvanizing thickness over 80um
Length：1600mm
Pipe Outside Diameter：76mm Pipe Inside Diameter：70mm Pipe Thickness：3.0mm
Flange Diameter：200mm
STEEL GROUND MOUNTING SYSTEM

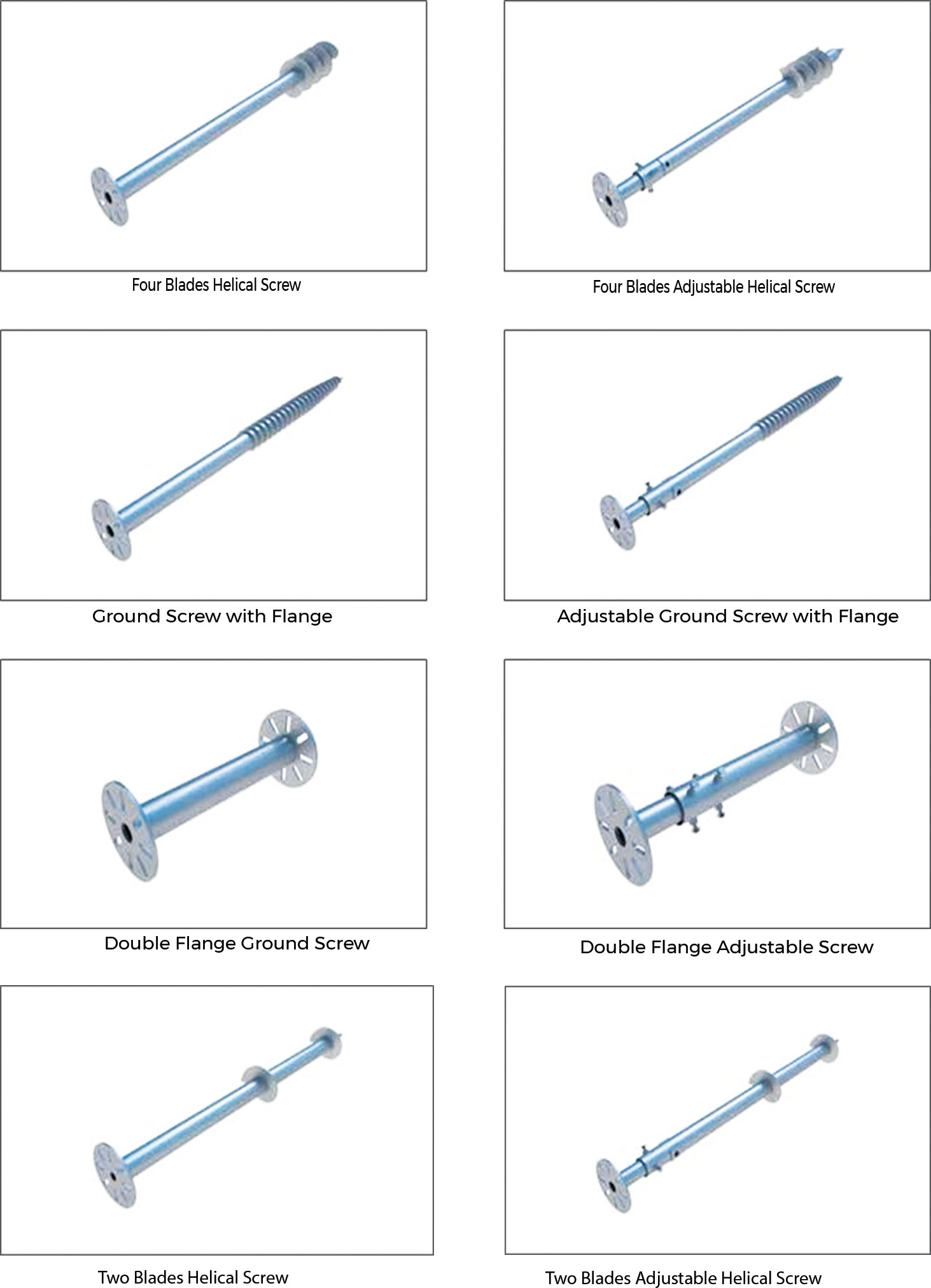

GALVANIZED GROUND SCREW

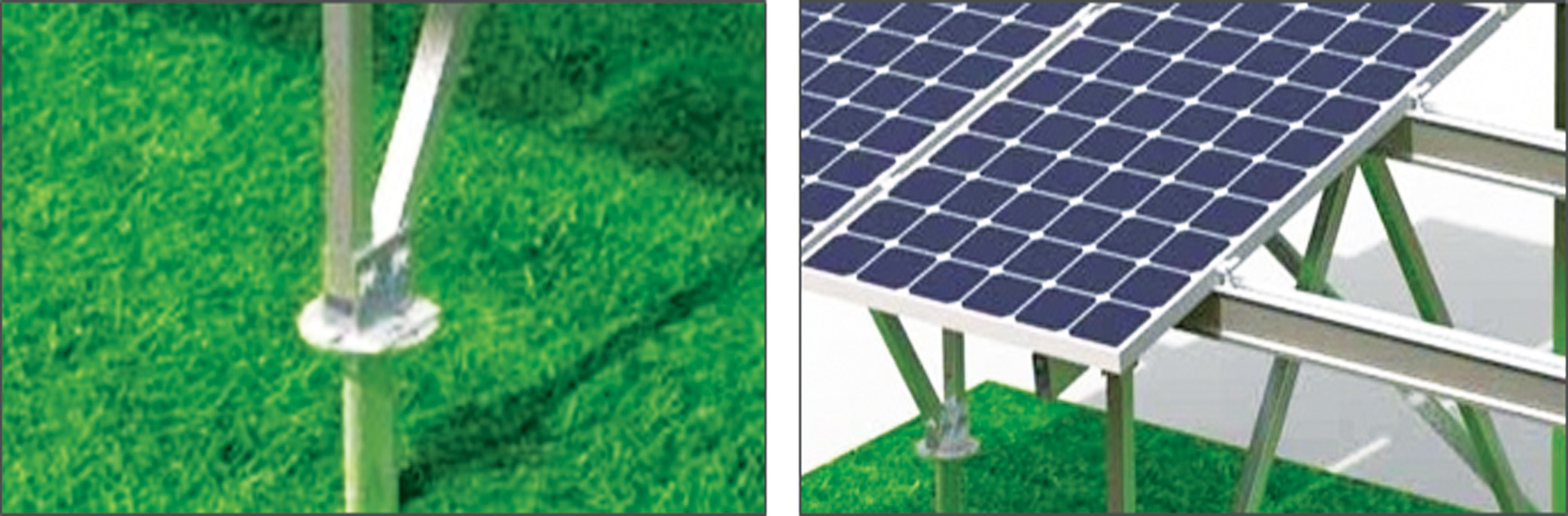

Hot Sale Ground screw with flange, the flange is convenient and
easy to connect with the solar bracket from upward.
HELICAL GROUND SCREW
Bigger blades provide better pulling resistance performance,
suitable for soft clay.

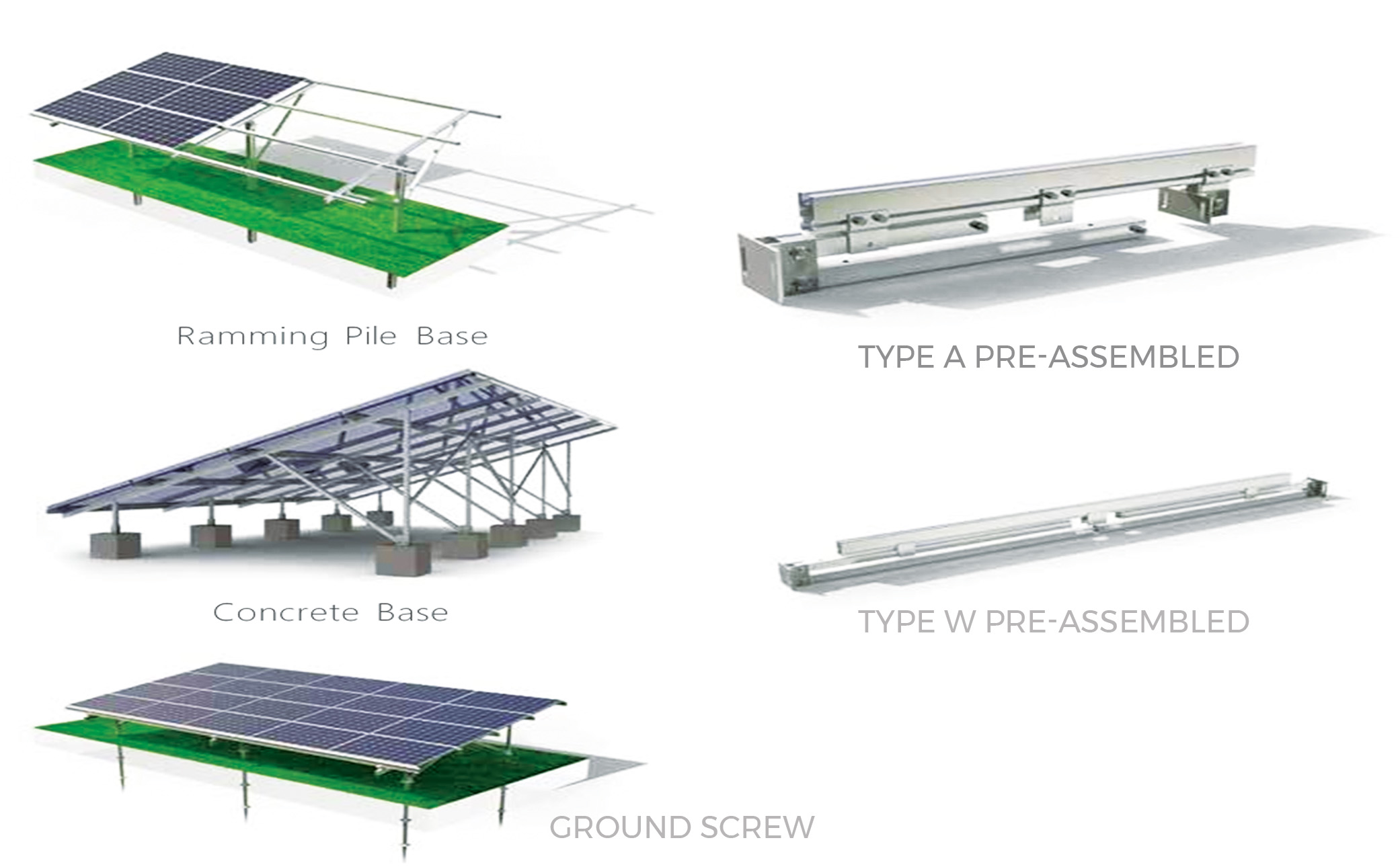

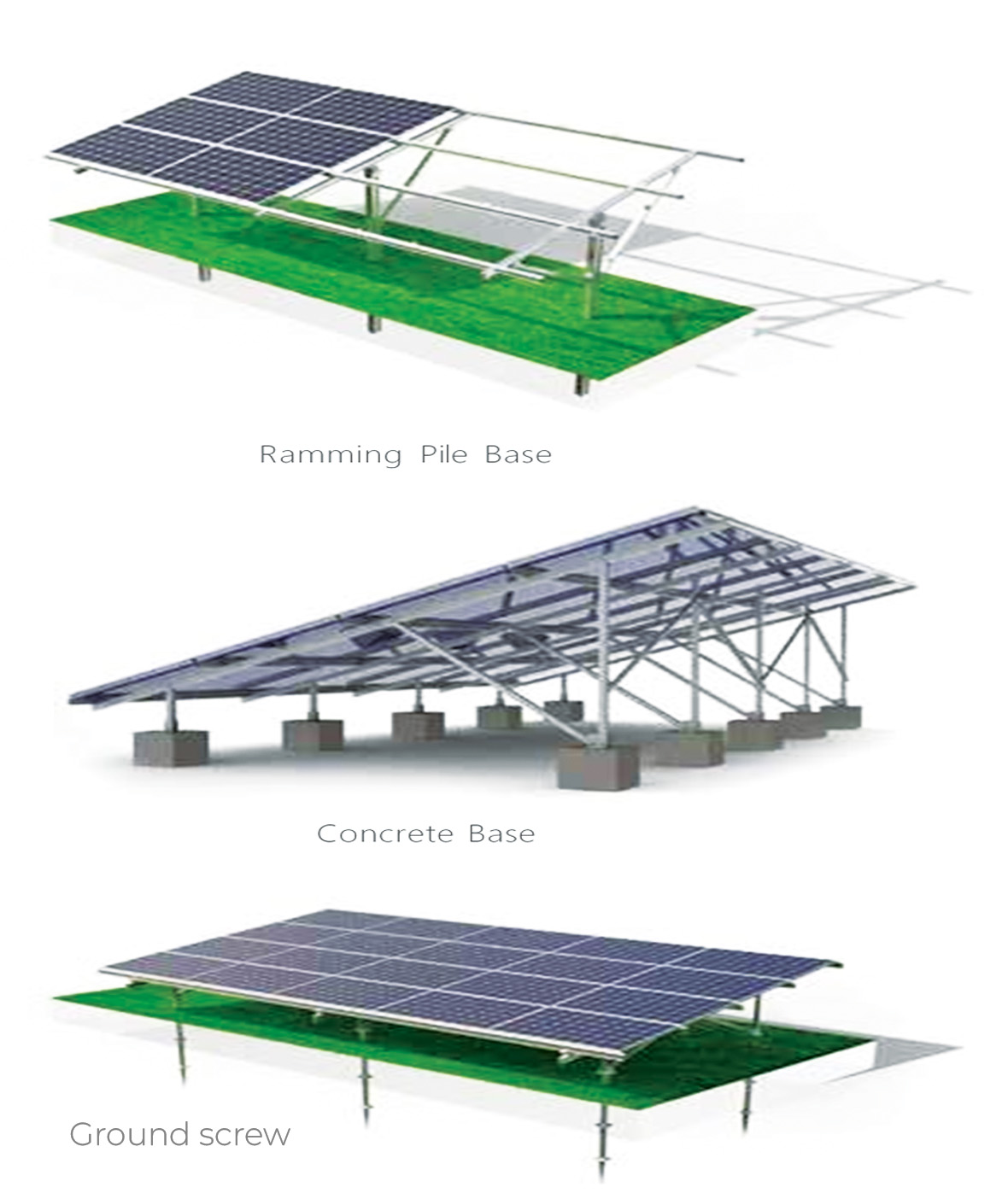

Ground Mounting system
Steel structure Ramming

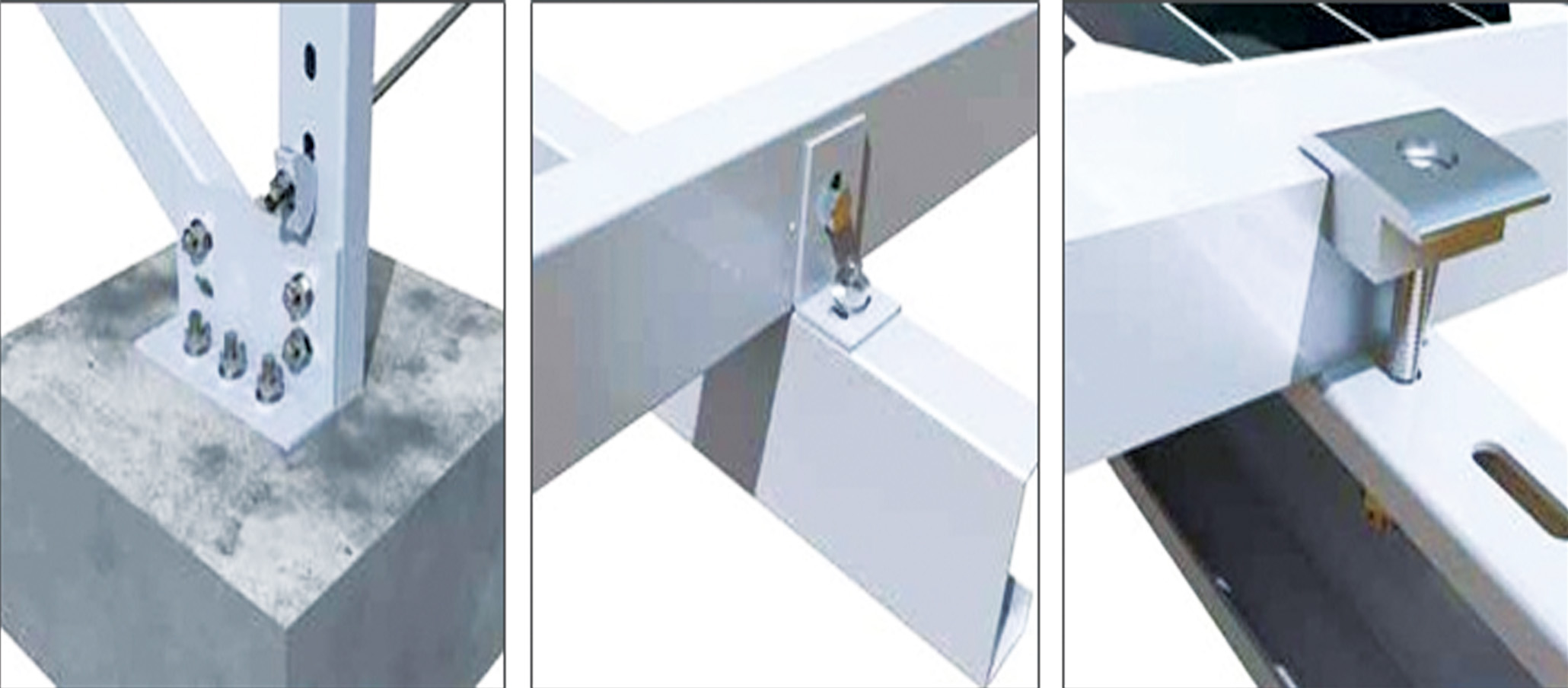

Steel structure + concrete foundation

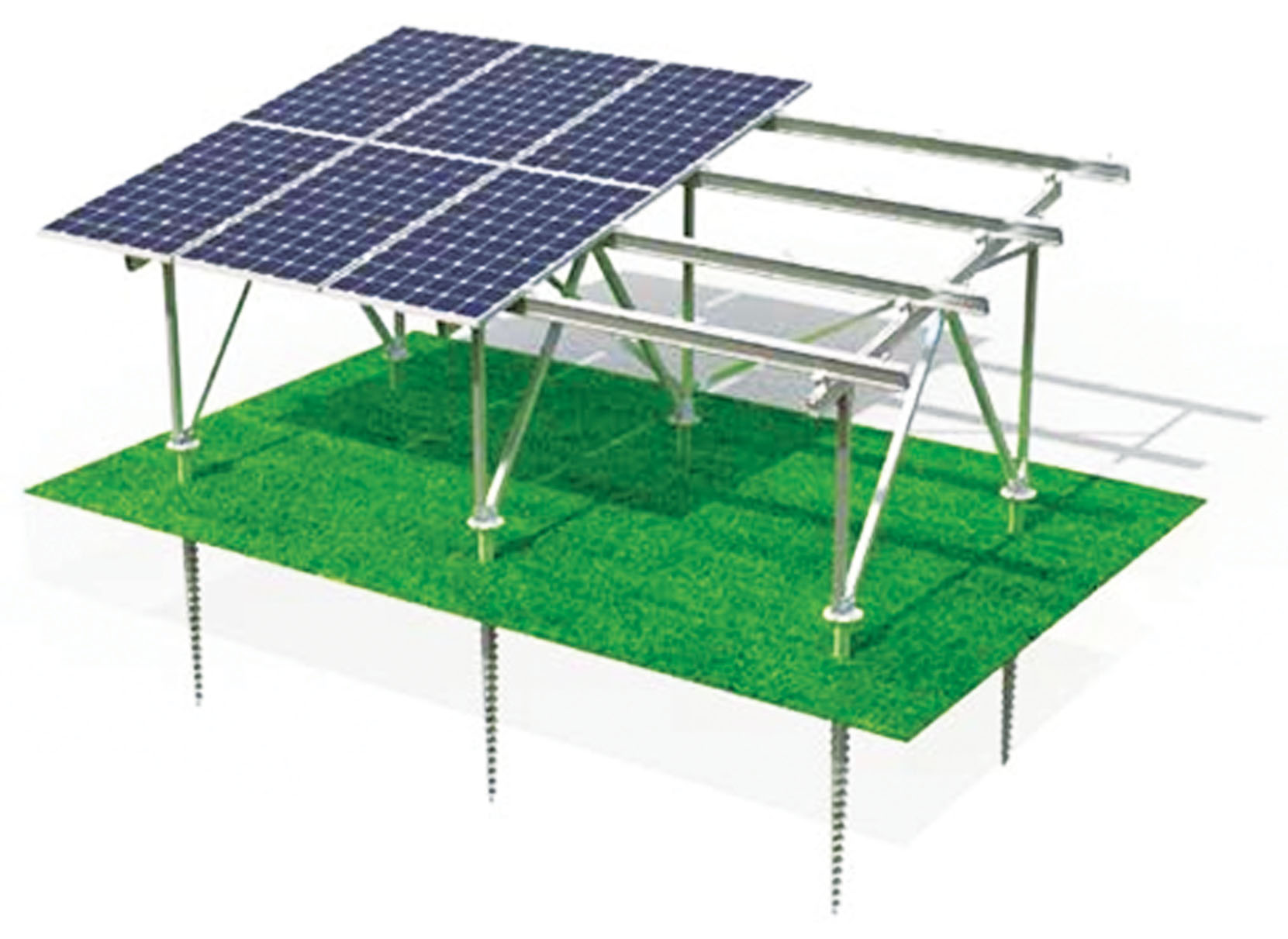

Steel structure + Ground Screw
Aluminum Alloy Structure
